As REV SCHEDULER can read a .pdf we thought that it would be good to be able to retrieve text from a .pdf.

In REV SCHEDULER we have the RJRTVPDF command that can do that.

The RJRTVPDF operates by navigating to the starting point in the .pdf text using the value in the /SCAN value and then retrieving the required text using the /NEXT value.

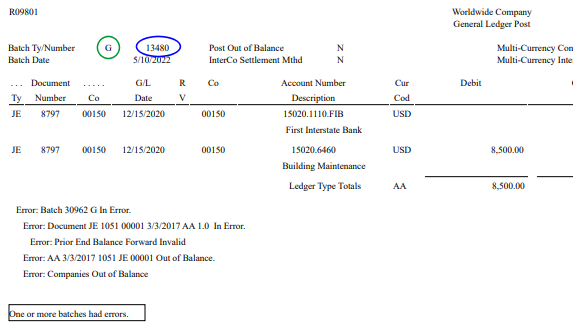

In this case we are looking to position to the text values of /SCAN='EQ=Batch Ty/Number'
which is to find the location of Batch Ty/Number
then to retrieve the value in /NEXT=*WORD02
which is the 2nd word after the location of the Batch Ty/Number

The value will then be used to update the value of a User Variable (#USR) in this case #USR_LAST_GOOD_BNO.

That User Variable can then be used in:

The Flowchart of this complete Scheduled Job looks like:

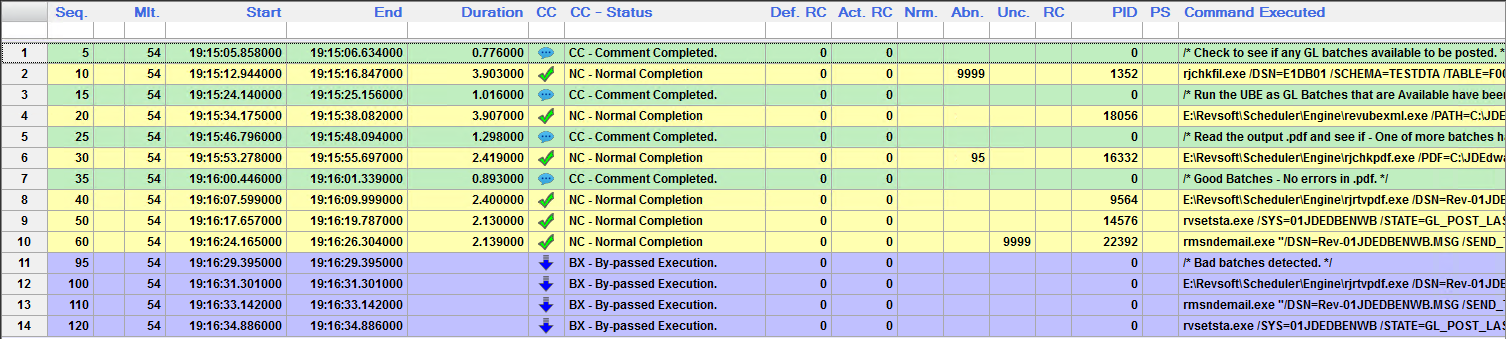

For a Good Batch the processing would look like:

The Script definition uses the Run Time E1 One World variables to resolve to the correct .pdf:

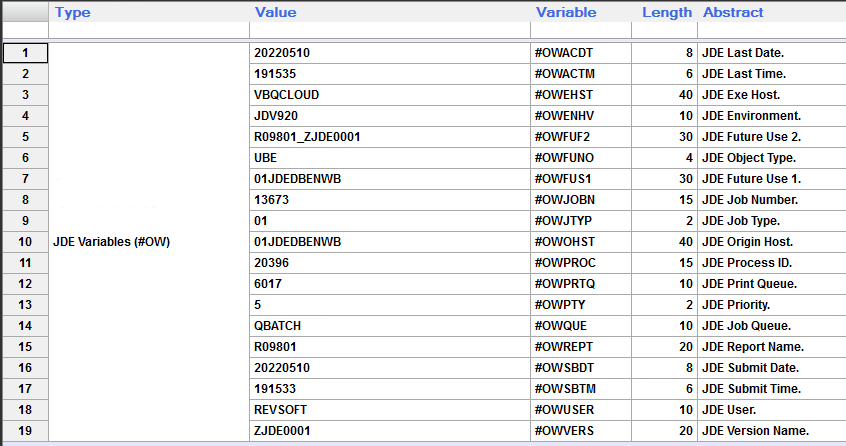

The run time E1 One World execution variable for this UBE look like:

This executes as:

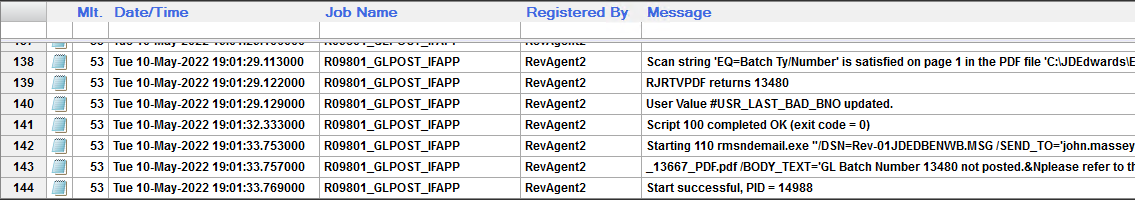

The Log shows the results for the Retrieve.

A Good Batch will execute the corresponding Scripts and Bypass the Bad Batch Scripts.

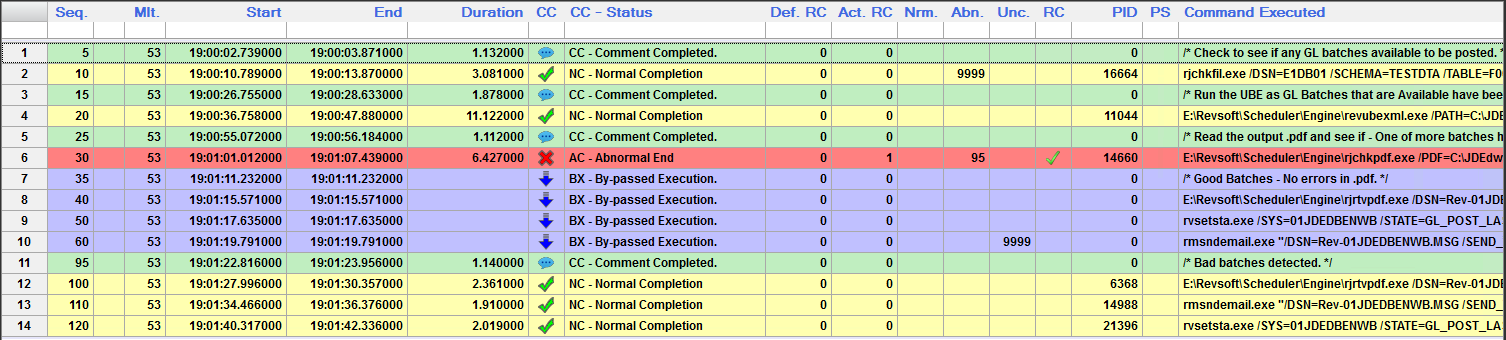

For a Bad Batch the processing would look like:

The Script definition uses the Run Time E1 One World variables to resolve to the correct .pdf:

The run time E1 One World execution variable for this UBE look like:

This executes as:

The Log shows the results for the Retrieve.

A Bad Batch will execute the corresponding Scripts and Bypass the Good Batch Scripts.
