REV SCHEDULER® On Demand UBE's REV SCHEDULER® On Demand UBE's

RevSoft has multiple mechanisms to only submit UBE's if:

  • Data exists in Tables,
  • Files exist,
  • Files exist containing data.

In this example we have a multi run job that will:

  • Start at 6am,
  • Execute every 15 minutes,
  • Last execution at 8pm.

This will run 57 times.

To make this process efficient we will:

  • Use the RJCHKFIL to see if there are Approved GL batches in the F0011 table waiting to be processed,
  • If so – then submit the GLPOST (R09801) UBE,
  • If not – do not submit the UBE and wait for next execution.

GLPOST Process Diagram

The Scripts to execute this look like:

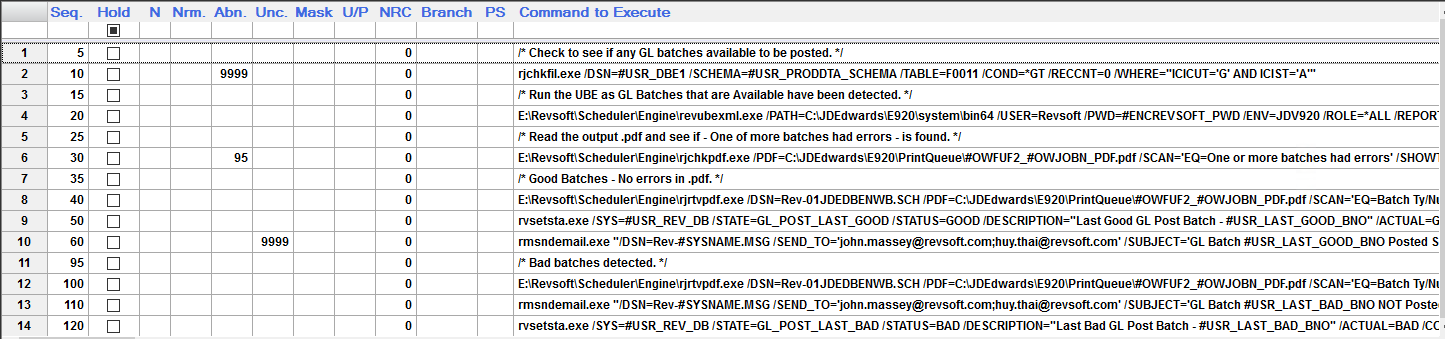

GLPOST Scripts

Any Scripts with /* and */ are comments.

Sequence 10 performs the RJCHKFIL command:

rjchkfil.exe
/DSN='#USR_DBE1'
/SCHEMA=#USR_PRODDTA_SCHEMA
/TABLE="F0011"
/COND=*GT
/RECCNT=0
/WHERE="ICICUT='G' AND ICIST='A'"

If Sequence 10 completes:

  • Normal – i.e. Data does exist – it will then proceed to the next Sequence (Sequence 15),
  • Abnormal – i.e. No Data exists – it will proceed to the next Sequence after 9999 (i.e. It will branch out).

On the ERPOne Cloud Server we can see:

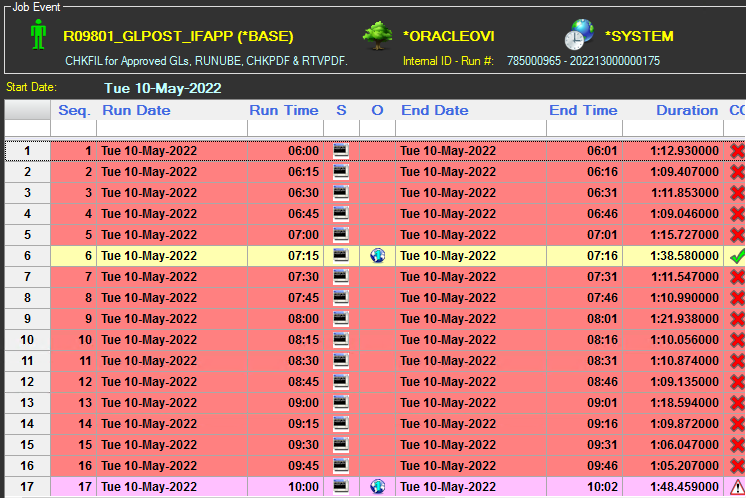

GLPOST Multi-Runs

Red - No Data detected so no UBE submitted,
Yellow - Data detected,
UBE submitted,
No errors in the GLPOST,
Pink - Data detected,
UBE submitted,
Errors in the GLPOST,

The Summary shows that out of the 57 executions the GLPOST UBE had only been submitted 6 times.

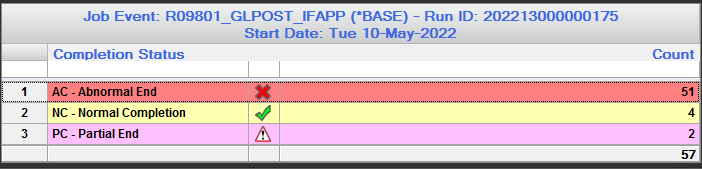

GLPOST Completion Codes

Comparing that to submitting the UBE at every execution (i.e. not checking for data) represents a 89.5% decrease.
